New ROVING NETWORKS Wifly GSX Evaluation Board For RN-131G Series 9 V Battery Clip Null Modem

New ROVING NETWORKS Wifly GSX Evaluation Board For RN-131G Series 9 V Battery Clip Null Modem Review

New ROVING NETWORKS Wifly GSX Evaluation Board For RN-131G Series 9 V Battery Clip Null Modem Feature

• WiFly GSX Evaluation Board for RN-131G Series.
• The WiFly GSX module is mounted to a development carrier board called the SURF board.
• This board has status LEDS and connections for the programmer and UART interfaces.
• The evaluation kit allows you to configure and program the WiFly GSX 802.11 b/g module using the command interface, create connections and transfer data.
• The command interface is made up of simple ASCII commands. A complete listing is available in the WiFly GSX User Manual (RN-131-UM.pdf).

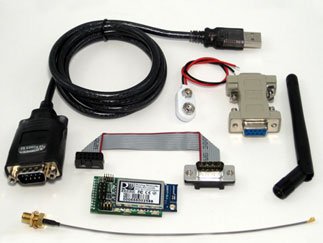

This document describes the hardware and software setup for the Roving Networks WiFly GSX 802.11 b/g module. In addition to the RN-131G-EVAL kit you will need a Windows based computer with a USB port. You may also need a null modem serial cable or USB to serial cable, if you want to connect the WiFly GSX UART to your computer. Evaluation Kit Description: The evaluation kit includes the following hardware required to connect to the WiFly GSX module though the USB of your computer. SURF board with WiFly GSX module. USB serial cable ¨C links your computer to the SURF board. Null modem. 10 pin Serial cable ¨C connects the RS232 header of the SURF board to a DB9 connector. 9 V battery clip; Antenna cable ¨C U.FL and reverse SMA connectors; 4" rubber antenna ¨C reverse SMA connector.
